BreatheTeq DIY Kit for Box Fan Filter

This kit contains the pieces to build your own air filter in 2 minutes. You must provide your own box fan and filter.

Brand: BreatheTeq

Kit is optimized for 20-in Box Fan with plastic case.

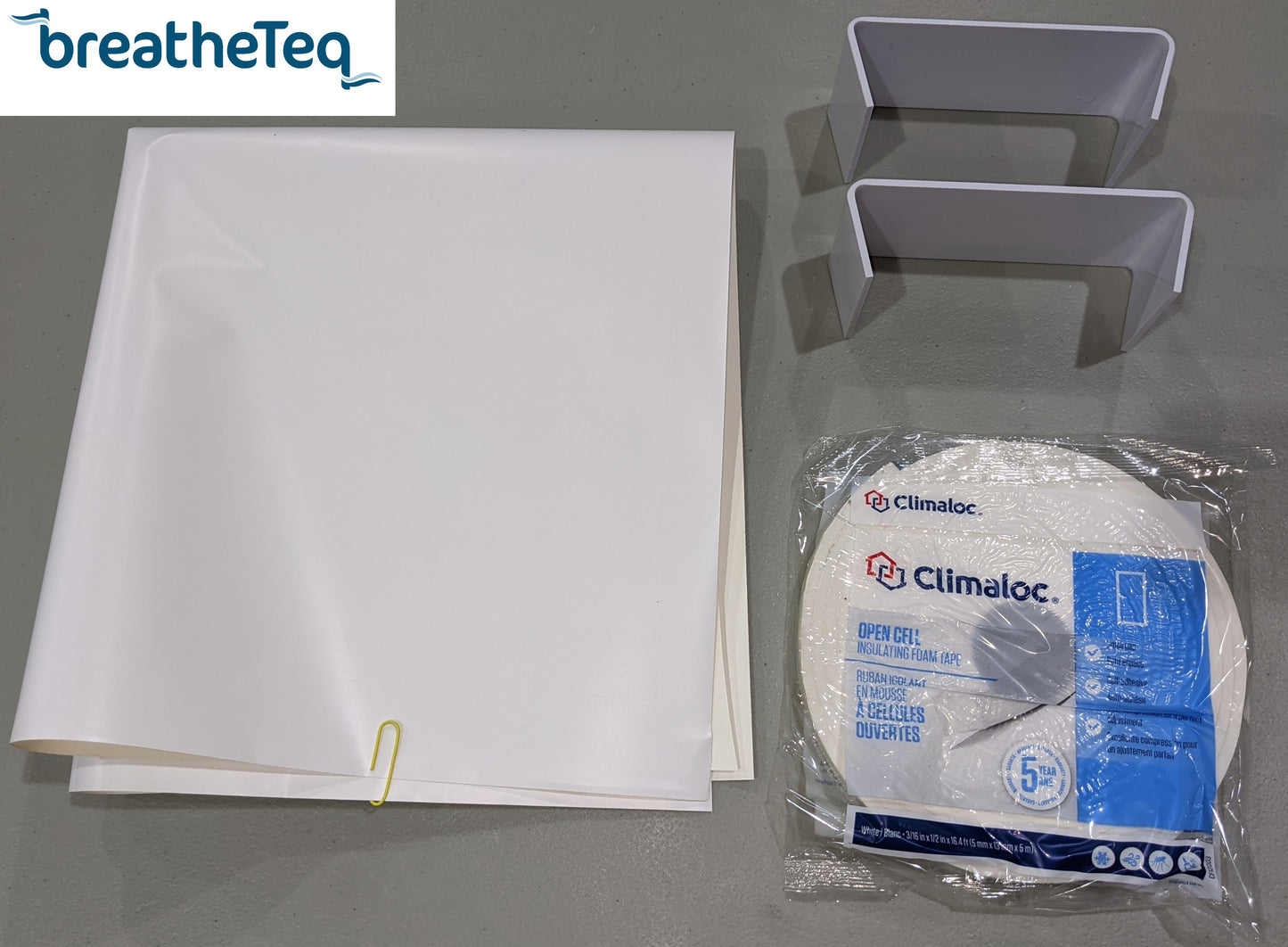

Kit contents:

• 2 White PVC Spring Clips
• 16 ft Foam Gasket
• 1 Vinyl Shroud (pre-cut)

Kit excludes these items (you must purchase separately):

• Air Filter (3M Filtrete 20x20x1 MPR1900, available at Home Depot)
• 20-in Box Fan (For Living/Utilitech 20-in)

Shroud

Features

• Pre-cut PVC vinyl with permanent adhesive backing
• Rounded corners, 14-in centre cutout, and smaller cutout for control wheel
• Shape is optimized to improve airflow by over 30% at all speed settings, with no additional power consumption

Performance

3M Filtrete MPR1900 is rated to remove:

• 62% of particulate 0.3-1.0um in size
• 87% of particulate 1.0-3.0um in size

Hypothetical CADR: approximately 250 CFM at setting 3 with 3M Filtrete MPR1900.

Instructions

1. Apply the Climaloc gasket around the perimeter of your air filter on the side that the arrow points to. Cut it to length. Save the remaining gasket for when you replace your filter.

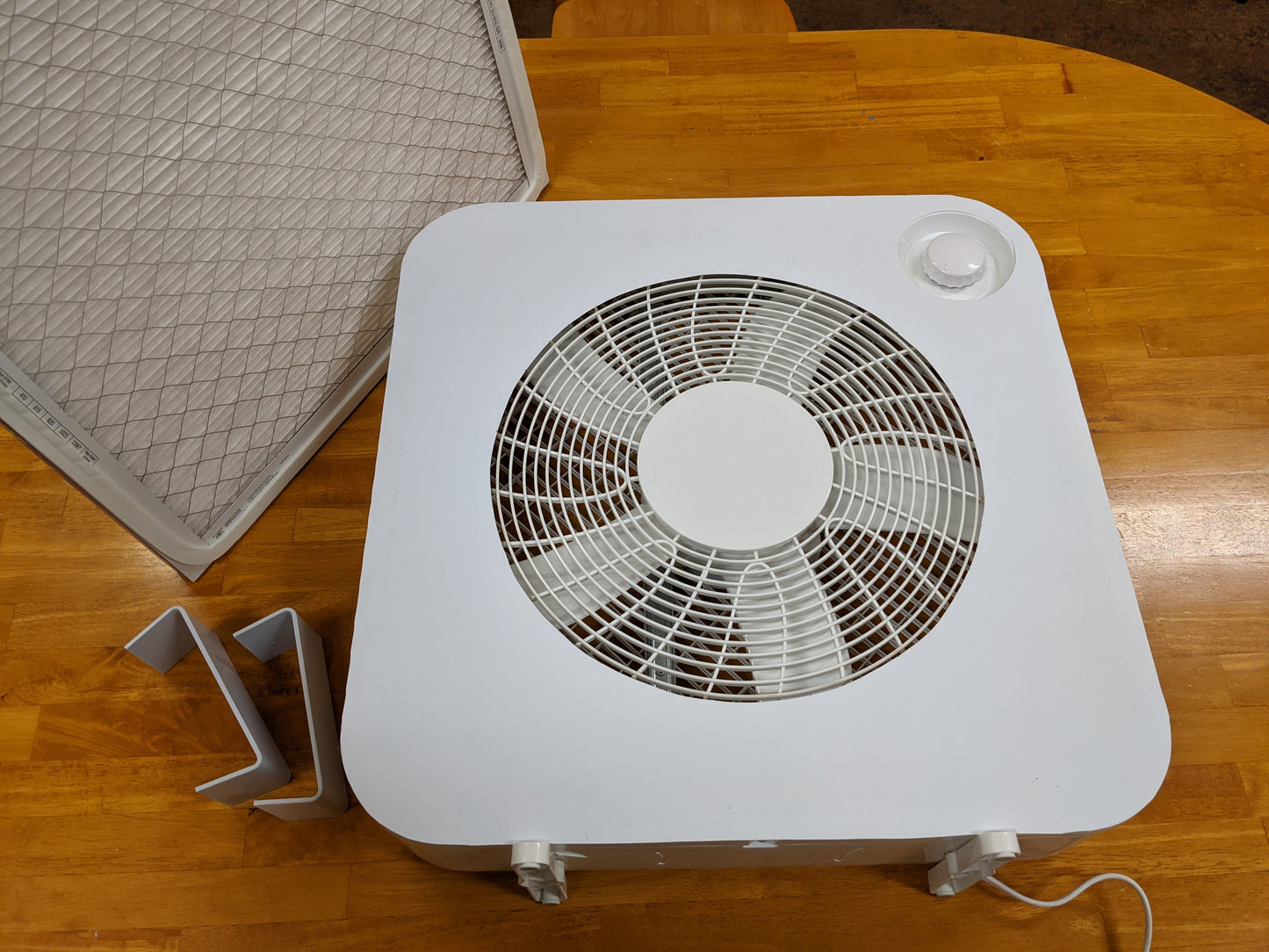

2. Partially peel the pre-cut vinyl shroud from the backing. Carefully align it's small hole to the control dial, and its edges to the box fan edges. Gently adjust and re-tack it into position while removing the backing until everything is aligned, then press down on the vinyl everywhere to make the adhesive hold.

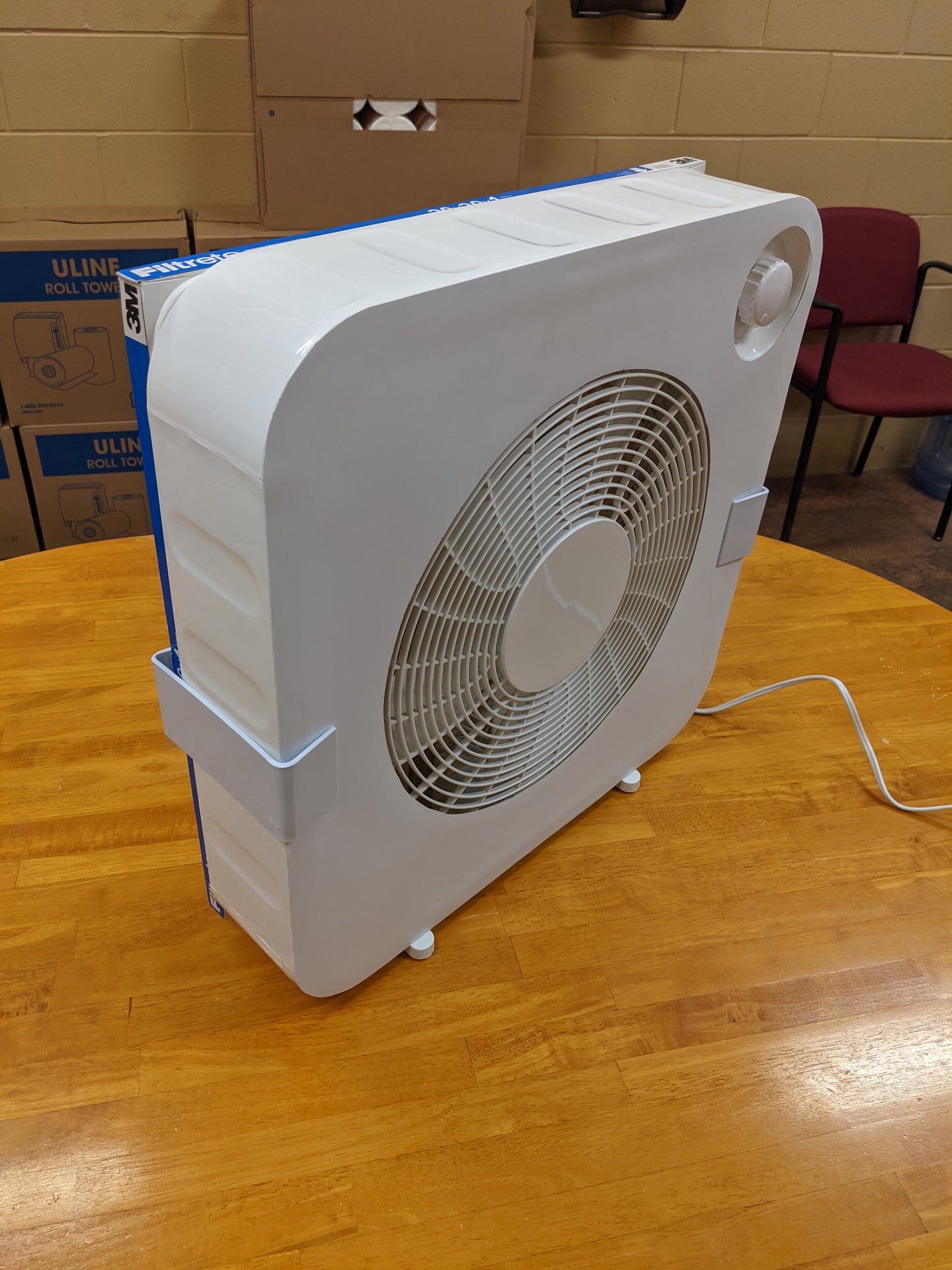

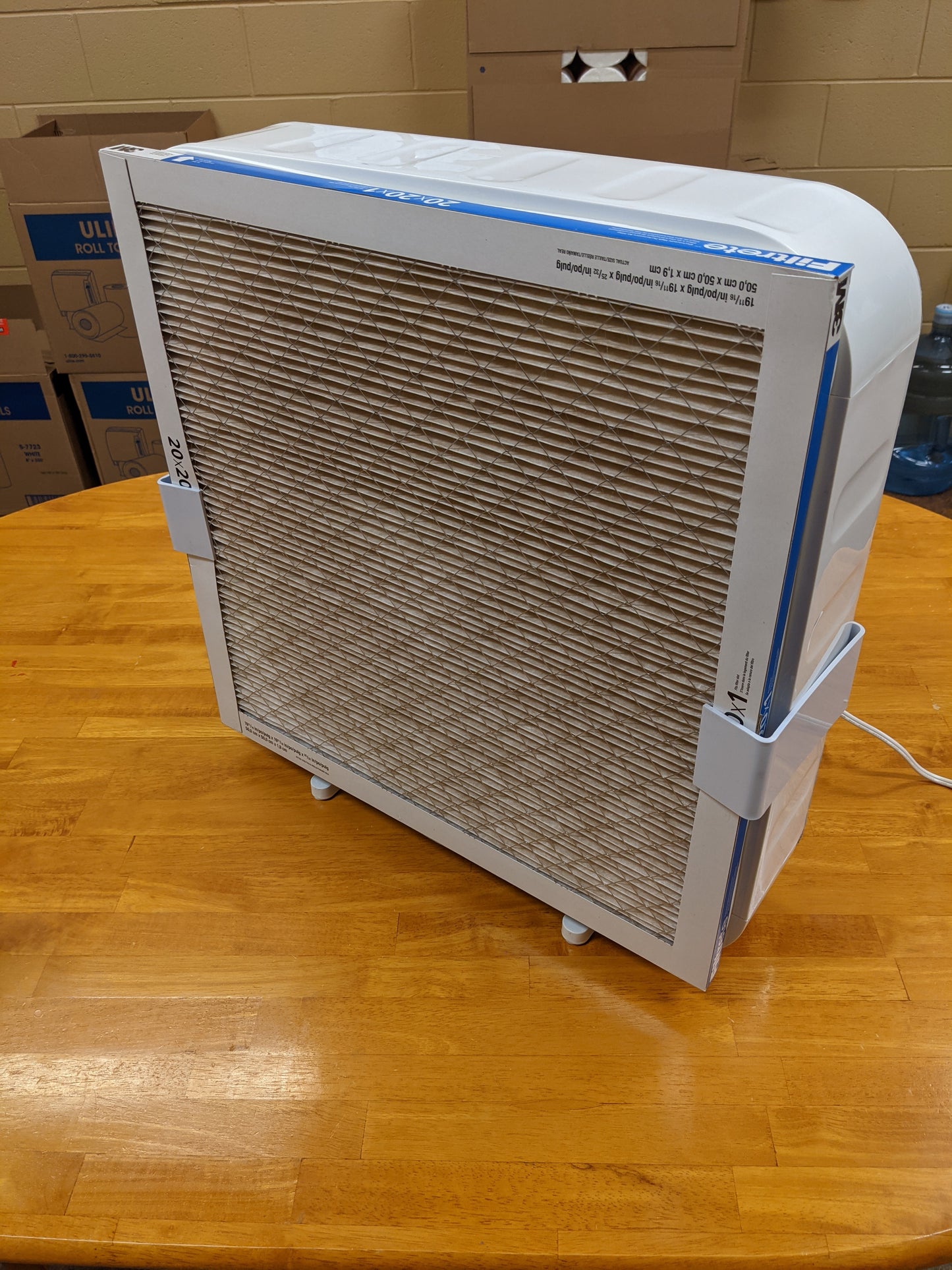

3. Use the clips to secure the filter to the back of the fan. Be sure the filter arrow is pointing towards the fan inlet.

Note: this item is final sale. Kit contents are not eligible for refunds or exchanges. The kit does not contain the fan nor the filter depicted in the images.
